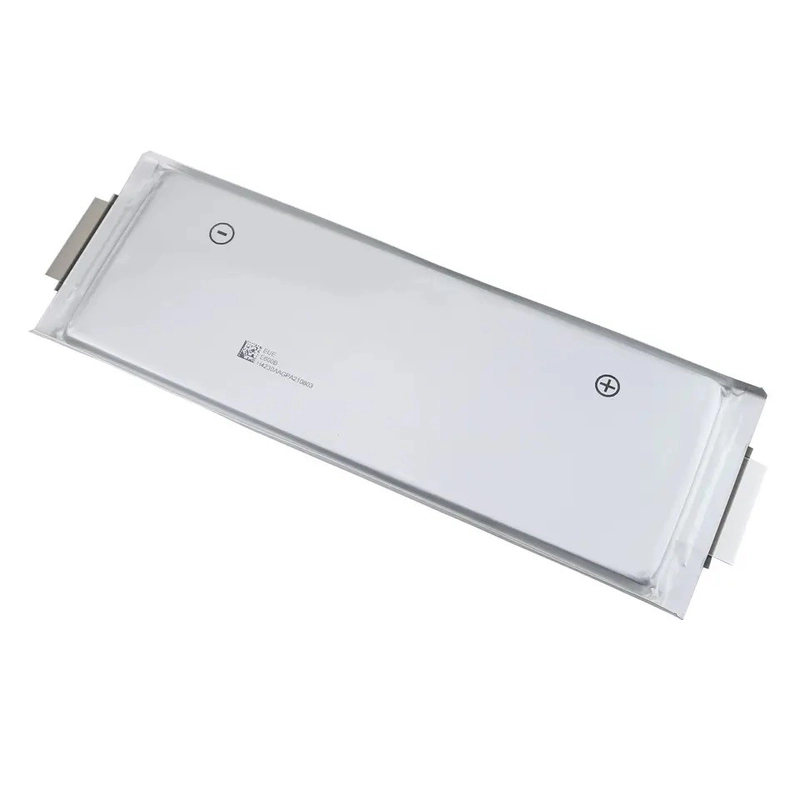

3.7V 60Ah Lithium Pouch Battery Rechargeable NMC Pouch Cell

Model Number : SK60

Certification : CB, CE, KC, ROHS,UN38.3

Place of Origin : Made in Korea

MOQ : 1000PCS

Payment Terms : L/C,T/T,Western Union

Delivery Time : 35 working days

Packaging Details : Industrial Pakcage

Name : Lithium Battery Pouch Cell

Material : Pounch Lithium Battery

Voltage : 3.7V

Ah : 60Ah

SIZE : 14.5*100*300(309)mm

Weight : ≤850g

Storage Teerature : -20~ 45℃

Cycle life : Over 2000 times

Warranty : 1 Year

Contact Now

3.7V 60Ah Lithium Pouch Battery Rechargeable NMC Pouch Cell

Features

1. High Energy Density: NMC chemistry offers a high energy density, providing substantial capacity (60Ah) in a relatively compact and lightweight pouch format (850g).
2. High Discharge Capability: Capable of supporting high continuous (up to 3C/180A) and peak pulse (6C/360A for 10s) discharge currents, suitable for power-intensive applications.
3. Long Cycle Life: Designed for a long service life, typically supporting over 2000 charge-discharge cycles while maintaining 80% of initial capacity.
4. Pouch Cell Advantages: Compared to metallic casing cells, pouch cells offer: Safer Failure Mode, Lighter Weight, Flexible Form Factor.
5. Wide Operating Temperature Range: Can operate effectively across a broad temperature range, particularly useful for applications in varying environments.
6.Low Self-Discharge: Retains charge for extended periods when not in use.

Specification

Normal Capacity	60Ah@0.5C 2(30A)
Normal Voltage	3.7V
Cell Weight	≤850g
Cell Dimension	Thickness :14mm Width :100 mm Length :300 mm
Charging Cut-off Voltage	4.20 ±0.05 V
Discharging Cut-off Voltage	2.75±0.05V (>0°C); 2.50±0.05V ( -20°C~0°C)
Standard Charging Current	0.5C 2(30A)
Standard Discharging Current	0.5C 2(30A)
Max. Continuous Charging Current	1.0C 2A (60A)
Max. Continuous Discharging Current	3.0C 2 A (180A)
Max. Plus Discharging Current	6C2 A (360A)/10s
Transport Voltage	3.70±0.05V
Storage Teerature	-20~ 45℃
Cycle life	Over 2000 times

3.7V 60Ah Lithium Pouch Battery Rechargeable NMC Pouch Cell

application

Light Electric Vehicles (LEVs): Electric scooters, electric bikes, electric motorcycles, and golf carts.

Uninterruptible Power Supplies (UPS): Backup power for critical systems.

Solar Energy Storage Systems: Storing solar energy for residential or portable use.

Power Tools: High-demand cordless tools requiring high current output.

Electric Power Systems: Various applications in power grids and distribution.

Portable Power Stations: DIY or commercial portable energy storage solutions.

Marine and RV Applications: Powering systems on boats and recreational vehicles.

Warnings & Precautions

Charging

Use a Compatible Charger: Always use a charger specifically designed for NMC/Li-ion chemistry and configured for this battery's voltage (4.2V) and current limits.

Charge Within Specifications: Do not charge above the maximum voltage of 4.2V or exceed the maximum continuous charge current specified by the manufacturer.

Temperature Monitoring: Charge only within the specified temperature range (0°C to 55°C). Never charge a battery that is below freezing or feels hot to the touch.

Discharging

Avoid Over-Discharge: Stop using the battery before reaching the cut-off voltage (2.75V at >0°C; 2.50V at -20°C to 0°C).

Respect Current Limits: Do not exceed the maximum continuous discharge current (3C/180A) for prolonged periods, as this can cause excessive heat generation and potential damage.

Temperature Management: Avoid discharging outside the recommended temperature range (-20°C to 55°C).

Storage

Partial Charge Storage: For long-term storage (longer than one month), store the battery at a 30%-50% State of Charge (SOC).

Cool and Dry Environment: Store in a cool, dry place away from direct sunlight, moisture, and heat sources. Ideal storage temperature is between -20°C to 25°C.
